Appleton™ ATX™ Plugs & Receptacles

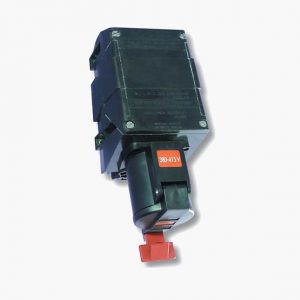

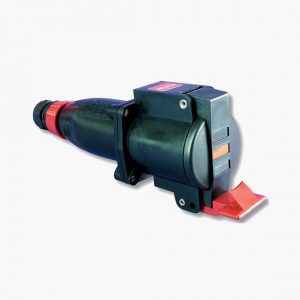

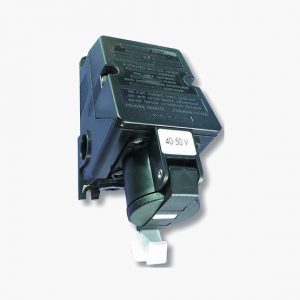

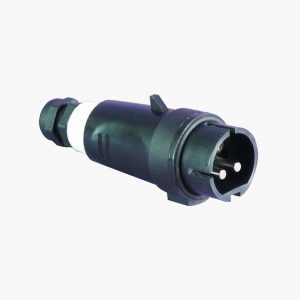

PRE Series 32 Amp Plugs and Sockets use a pin and sleeve design to deliver safe power to stationary and portable equipment such as lighting systems, conveyors, heating and air conditioning equipment, compressors, pumps or motor generators. Suitable for use in damp, wet or corrosive environments, PRE plugs and sockets are keyed and color coded per IEC directives. The sockets are available in wall-mount, flush-mount and mobile versions.

Features

• Plug and socket system is designed with a safe disconnect mechanism to insure maximum hazardous location protection

• The contact separation is in a flameproof chamber

• The automatic electrical disconnection of each phase is contained in a second flameproof chamber

• Short circuit protection is 20 kA, while normal reference is 10 kA

• Different voltages are colour coded for easy identification

• The receptacles are keyed to accept only ATX plugs (other plugs cannot be inserted)

• ATX plugs can be used in non-hazardous IEC 309 sockets

• Operating temperature of -40 °C to +55 °C (-40 °F to +131 °F)

Specifications

Area Classification: Zone 1 and 2 – 21 and 22; Ex II 2 GD; IP66; IK10

Operating Temperature: -40 °C to +55 °C (-40 °F to +131 °F)

Voltage: 100/130 Vac, 200/250 Vac, 380/415 Vac or 480/500 Vac

Number of Poles: 2, 3

Number of Wires: 3, 4, 5

Hertz: 50/60 Hz

Materials and Finishes: Wall Socket is high impact resistance fiberglass reinforced polyester. Polyamide plug, mobile socket and flush socket.

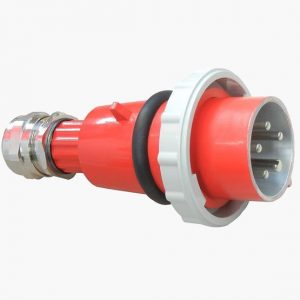

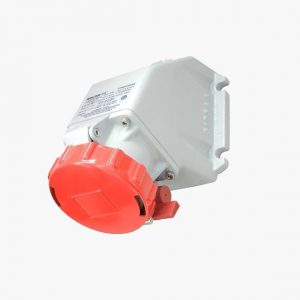

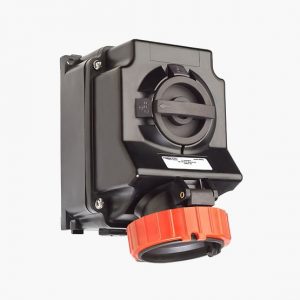

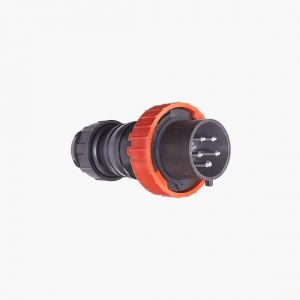

UPR Series 32 Amp Plugs and Sockets are compact, lightweight, strong and corrosion resistant. They are used with portable or stationery electrical equipment in corrosive atmospheres and in Zone 1 and 2 and 21 and 22 installations. The UPR is designed with a mechanical interlock to insure disengagement cannot occur while energized. The same plug used in hazardous locations can also be safely used with interlocking non-hazardous location receptacles.

Features

• Plug and socket system is designed with a mechanical interlock to insure disengagement cannot occur while energized

• Large ON/OFF actuator on the receptacle gives clear, visible indication of the receptacle status for maximum hazardous location protection

• LV receptacle can be locked in 0 (Off) and 1 (On) positions

• Different voltages are colour coded for easy identification

• The receptacles are keyed to accept UPR plugs of the proper voltage

• Receptacle explosionproof switch

• UPR plugs can be used in non-hazardous IEC 60309-2 sockets

• Operating temperature of -20 °C to +55 °C (-4 °F to +131 °F)

Specifications

Area Classification: Zone 1 and 2 – 21 and 22; Ex II 2 GD; IP66; IK09

Operating Temperature: -20 °C to +55 °C (-4 °F to +131 °F)

Voltage: 100/130 Vac, 200/250 Vac, 380/415 Vac, 480/500 Vac or 600/690 Vac

Number of Poles: 2, 3

Number of Wires: 3, 4, 5

Hertz: 50/60 Hz

Materials and Finishes: Polyamide wall socket and plug.

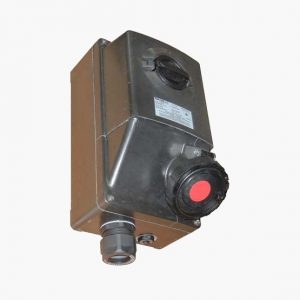

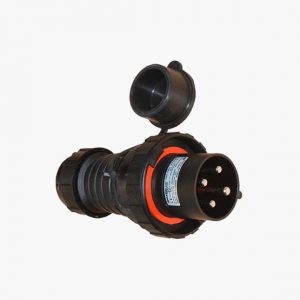

UPR Series 63 Amp Plugs and Sockets are designed with a mechanical interlock to ensure disengagement cannot occur while portable or stationery electrical equipment is energized. These increased safety plugs and sockets are certified for use in corrosive atmospheres and in Zone 1, 2, 21, and 22 installations.

Features

• Positive polarization: only ATX plugs of same style, number of poles and ampere rating may be used with these sockets

• Interlocked 3-pole or 4-pole Ex de disconnecting on-load switch, with auxiliary contact (max 2.5 mm² capacity)

• Plug is mechanically locked in socket when switch is ON

• Switch operating handle can be padlocked in OFF position (max 4 padlocks)

• Plug cannot be inserted or removed unless switch is in OFF position

Specifications

Area Classification: Zone 1 and 2 – 21 and 22; IP66; IK10

Operating Temperature: -30 °C to +55 °C (-22 °F to +131 °F)

Voltage: 200/250 Vac, 380/415 Vac, 440/460 Vac or 480/500 Vac

Number of Poles: 3, 4

Number of Wires: 3, 4

Hertz: 50/60 Hz, 60 Hz

Materials and Finishes: Fiberglass reinforced polyester socket and polyamide flap cover and plug

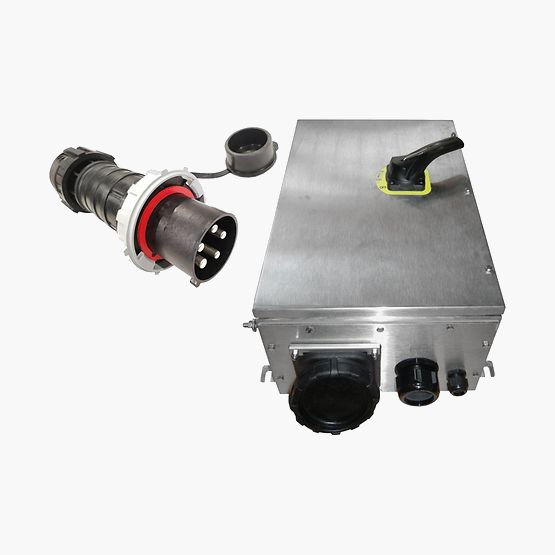

UPR Series 125 Amp Plugs and Sockets are compact, lightweight, strong and corrosion resistant. They are used with portable or stationery electrical equipment in corrosive atmospheres and in Zone 1 and 2 and 21 and 22 installations. The UPR is designed with a mechanical interlock to insure disengagement cannot occur while energized. The same Ex plug used in hazardous locations can also be safely used with interlocking non-hazardous location receptacles.

Features

• Positive polarization: only ATX plugs of same style, number of poles and ampere rating may be used with these sockets.

• Interlocked 3-pole or 4-pole Ex de disconnecting on-load switch, with auxiliary contact (max 2.5 mm2 capacity).

• Plug is mechanically locked in socket when switch is ON.

• Switch operating handle can be padlocked in OFF position (max 4 padlocks).

• Plug cannot be inserted or removed unless switch is in OFF position.

• Ambient temperature of -30 °C to +40 °C/+55 °C (-22 °F to +104 °F/+131 °F)

Specifications

Area Classification: Zone 1 and 2 – 21 and 22

Operating Temperature: (-30 °C to +40 °C/+55 °C (-22 °F to +104 °F/+131 °F)

Voltage: 380/415 Vac, 480/500 Vac, 440/460 Vac, 600/690 Vac

Number of Poles: 3

Number of Wires: 4, 5

Hertz: 50/60 Hz

Materials and Finishes: Stainless steel wall socket polyamide plug
