Ex d Enclosures

What We Do

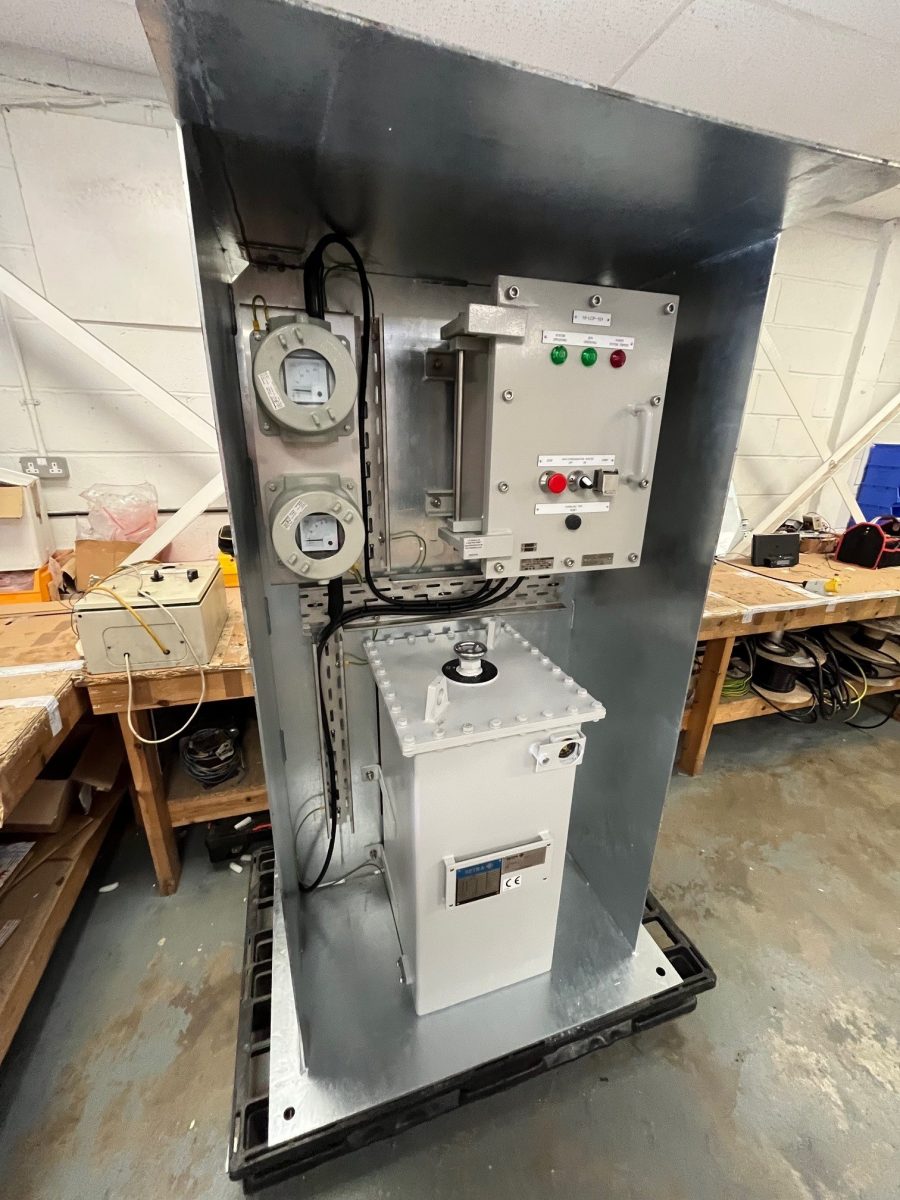

J.B. Systems Limited Offers a Fully Customizable Explosion Proof and Safe Area Panel Assembly and Wiring Service using a variety of Explosion Proof Ex d Enclosures.

All Hazardous Area Enclosures and Terminal Boxes comply with ATEX requirements and are supplied with the relevant Declaration of Conformity and Hazardous Area Certifications where requested.  A full Design and CAD drawing facility is also available.

Typical Components, which can be Mounted Inside these Enclosures, Range from PLC’s, Timers, Relays, Large and Small Contactors, Overloads, Transformers and Terminals.

Please Contact Us for more Information or a Quote

Customizable Options

  • For Ex d Enclosures, Lamps, Pushbuttons, Switches and Isolators can be mounted on the Door or Lid.
  • Windows of 50mm or 90mm are available for Analogue and Digital Meters.
  • Larger Square or Rectangular Windows up to 250mm x 200mm can also be supplied for Annunciators or Equipment with Large or Detailed Readouts.
  • Materials of Enclosure and Terminal Junction Boxes vary from, Marine Grade Aluminium Alloy, Welded Steel & Stainless Steel.
  • Cable Glands for Hazardous and Safe Area Applications are also Available on Request.

CF10B – CF70B Enclosures

ATEX/IECEx Certification

  • Gas: Zones 1 & 2
  • Conforming to ATEX 94/9/CE: Ex II 2 G
  • Type of Protection: Ex d IIB
  • Dust: Zones 21 & 22
  • Conforming to ATEX 94/9/CE: Ex II 2 D
  • Type of Protection: Ex tD A21
  • Ambient Temperature:
  • CF30B, CF60B, CF70B: -20°C to +55°C
  • CF10B, CF20B, CF40B, CF50B: -40° to +55°C
  • CE Declaration of Conformity: 5C238
  • ATEX Certificate: LCIE 07 ATEX 0005U
  • Internal Volume: >2dm³ (2 Litres)
  • Index of Protection according EN/IEC 60529: IP66
  • Impact Resistance (shock): IK10

CMS Enclosures

ATEX/IECEx Certification

  • Gas, Zones 1 & 2
  • Conforming to ATEX 94/9/CE: Ex II 2 G
  • Type of Protection: Ex d IIB
  • Temperature Class: T6 to T4
  • Dust, Zones 21 & 22
  • Conforming to ATEX 94/9/CE: Ex II 2 G
  • Type of Protection: Ex tD
  • Surface Temperature: T80 °C to T130 °C
  • Ambient Temperature: -20 °C to +55 °C
  • CE Declaration of Conformity: 50236
  • ATEX Certificate: LCIE 02 ATEX 6247X
  • IECEx Certificate: IECEx LCI 080024X
  • Internal Volume: >2dm³ (2 Litres)
  • Index of Protection according EN/IEC 60529: IP66
  • Impact Resistance (shock): IK10
